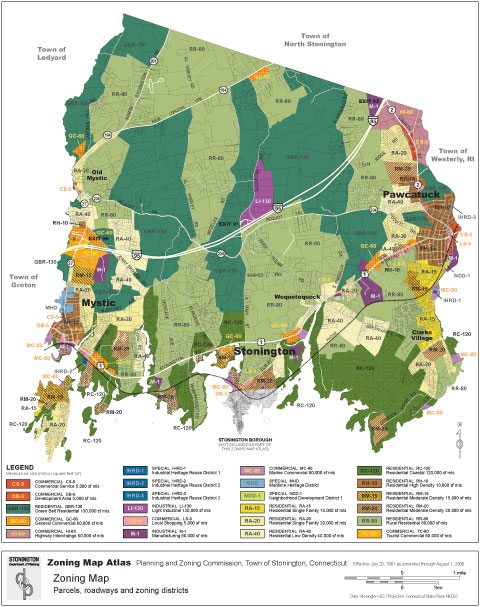

Zoning Map Atlas

Stonington, Connecticut, 2006

Working from GIS data in ESRI Arc format supplied by the planning and zoning commission, a new map design for the atlas overview and detail pages was developed. Map linework was edited and labeled in Adobe Illustrator, and output as PDF files for each map sheet.
